DC-DC Inverters
Aviv Energy Tech presents various Inverters of DC-DC Series
Input Voltages: 5VDC, 12VDC, 24VDC,48VDC
Output Power: 1W to 700W
Domains of input voltages: 4:1,3:1,2:1
Output voltages: 1.2VDC to 48VDC
Single – Output, Dual-Output, Tri-Output
High switching frequency
High efficiency
Output voltage change
Protections: Short, overload, high voltage surges
output Input Isolation
Filter protection: RFI, EMI
Safety Standards: CE, TUV, UL
Working Temperature option: 40º to 110º
Applications: control, communications, data transmission, etc.
Aviv Energy Tech presents various Inverters of DC-DC Series
Input Voltages: 5VDC, 12VDC, 24VDC,48VDC
Output Power: 1W to 700W
Domains of input voltages: 4:1,3:1,2:1
Output voltages: 1.2VDC to 48VDC
Single – Output, Dual-Output, Tri-Output
High switching frequency
High efficiency
Output voltage change
Protections: Short, overload, high voltage surges
output Input Isolation
Filter protection: RFI, EMI
Safety Standards: CE, TUV, UL
Working Temperature option: 40º to 110º
Applications: control, communications, data transmission, etc.
| Model | Picture | Power (W) | VDC | VDC | Details |
| SR Series |  |
0.5-1 W | 5,9,12,15 VDC | 5,12,24,48 VDC |  |
| TU Series |  |
1 W | 5,12,15,+/-5,+/-12,+/-15,+/-24 VDC | 5,12,24 VDC | |
| MAU-FLK Series |  |
1 W | 3.3,5,9,12,15,+/-5,+/-12,+/-15 VDC | 3.3,5,12,24 VDC | |
| PU Series |  |
1 W | 3.3,5,9,12,15,24,+/-5,+/-9,+/-12,+/-15 VDC | 3.3,5,9,12,24 VDC | |
| PU-S Series |  |
1 W | 5,9,12,15,+/-5,+/-12,+/-15 VDC | 5,12,24 VDC | |
| PR Series |  |
1 W | 5,9,12,15,24 VDC | 5,12,24,48 VDC | |
| MU-FLK Series |  |
1 W | 3.3,5,9,12,15 VDC | 3.3,5,12,24 VDC | |
| SU Series |  |
0.5-2 W | 3.3,5,9,12,15,24 VDC | 5,12,24,48 VDC | |
| NU Series |  |
1-2 W | 3.3,5,9,12,15 VDC | 3.3,5,12,24 VDC | |
| MU-2W Series |  |
2 W | 5,12,15 VDC | 5,12,24 VDC | |
| MBU-2W Series |  |
2 W | 3.3,5,9,12,15 VDC | 5,12,24 VDC | |
| PU-2W Series |  |
2 W | 3.3,5,9,12,15,+/-5,+/-12,+/-15,+/-24 VDC | 3.3,5,12,24 VDC | |
| CAR Series |  |
2 W | 5,9,12,15,+/-5,+/-12,+/-15 VDC | 5,12,24,48 VDC | |
| CBR Series |  |
2-3 W | 5,12,15+/-12,+/-15 VDC | 5,12,24,48 VDC | |
| PAW/PBW Series |  |
2-3 W | 3.3,5,9,12,15,24,+/-5,+/-12,+/-15 VDC | 4.5-9,9-18,18-36,36-75,9-36,18-75 VDC | |
| PU-3 Series |  |
3 W | 5,9,12,15 VDC | 5,12,24 VDC | |
| CR Series |  |
3 W | 5,9,12,15,24,+/-5,+/-12,+/-15 VDC | 5,12,24,48 VDC | |
| CQW-6K Series |  |
3-5 W | 5,12,15,+/-5,+/-12,+/-15 VDC | 4.5-9,9-18,18-36,36-72 VDC | |
| LW Series |  |
5 W | 3.3,5,12,15,24,+/-5,+/-12,+/-15 VDC | 4.5-9,9-18,18-36,36-72,9-27,18-54,9-36,18-72 VDC | |
| NSD05-S Series |  |
5 W | 3.3,5,12,15 VDC | 9.2-36,18-72 VDC | |
| CW 3W-6W Series |  |
3-6 W | 3.3,5,9,12,15,24,+/-5,+/-9,+/-12,+/-15 VDC | 4.5-9,9-18,18-36,36-72,9-36,18-72 VDC | |
| FAW-Series |  |
10 W | 3.3,5,9,12,15,24,+/-5,+/-9,+/-12,+/-15,+/-24 VDC | 9-18,18-36,36-729-27,18-54,9-36,18-72 VDC | |
| NSD10 Series |  |
10 W | 3.3,5,9,12,15,+/-5,+/-12,+/-15 VDC | 9.8-36,22-72 VDC | |
| CW 10W-12W Series |  |
10-12 W | 2.5,3.3,5,12,15,+/-5,+/-12,+/-15 VDC | 9-18,18-36,36-75 VDC | |
| DCW-Series |  |
15 W | 3.3,5,12,15 VDC | 9-18,18-36,36-75 VDC | |
| FCW Series |  |
15 W | 5,12,15,24,+/-5,+/-12,+/-15,+/-24 VDC | 339-18,18-36,36-72,9-36,18-72 VDC | |
| KW Series |  |
15 W | 3.3,5,9,12,15,24,27,+/-5,+/-12,+/-15,+/-24 VDC | 9-18,18-36,36-72,9-36,18-72 VDC | |
| NSD15-S Series |  |
15 W | 3.3,5,12,15,+/-5,+/-12,+/-15 VDC | 9.4-36,18-72 VDC | |
| CW-A20 Series |  |
20 W | 5,12,15 VDC | 9-18,18-36,36-75 VDC | |
| FEWS Series |  |
20-30 W | 3.3,5,12,15,+/-12,+/-15 VDC | 9-18,18-36,36-75,9-36,18-75 VDC | |
| KAW Series |  |
30 W | 3.3,5,5.1,9,12,15,24,42,+/-5,+/-12,+/-15,+/-24 VDC | 9-18,18-36,36-72,9-36,18-72 VDC | |

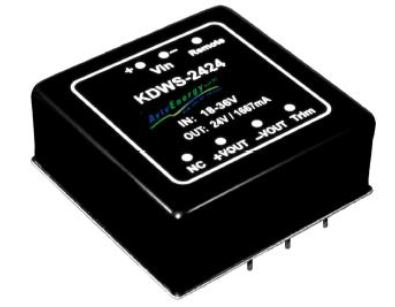

| KDW Series |  |
30-40 W | 12,15,24,30,+/-12,+/-15 VDC | 9-18,18-36,36-72 VDC | |

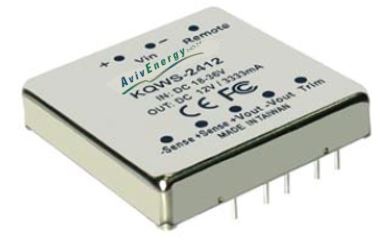

| KQWS Series |  |
40 W | 3.3,5,9,12,15 VDC | 9-18,18-36,36-75,9-36,18-75 VDC | |

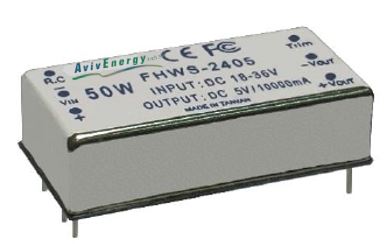

| FHWS Series |  |
50 W | 5,12,15 VDC | 18-36,36-75 VDC | |

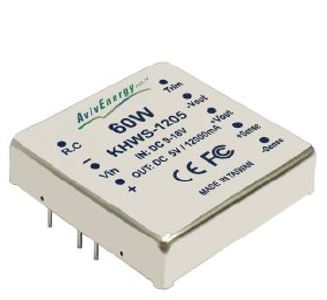

| KHWS Series |  |
60 W | 3.3,5,12,15 VDC | 9-18,18-36,36-75 VDC | |

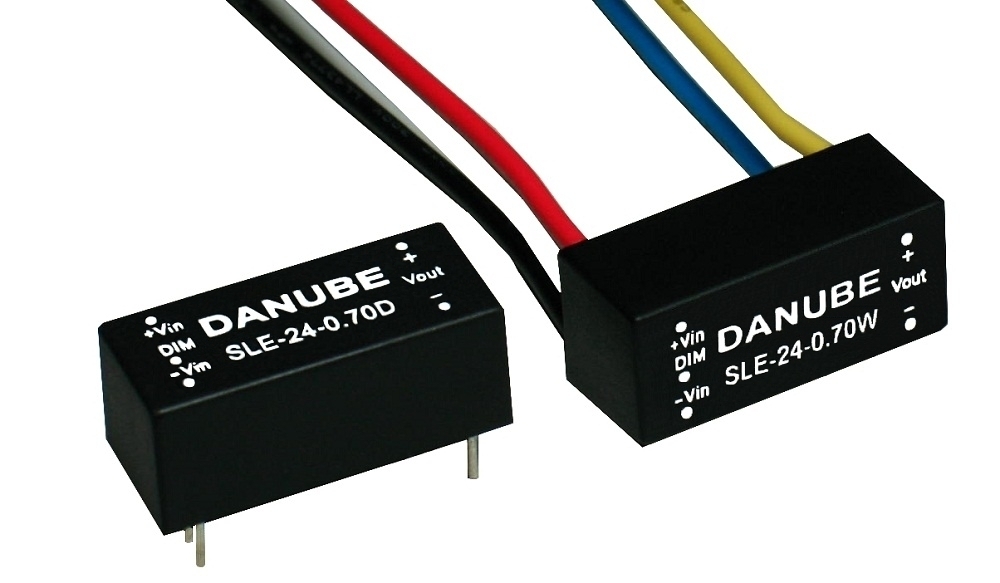

| SLE-24 Series |  |
0.3-0.7 W | 2-32,2-28 VDC | 9-36,9-32 VDC | |

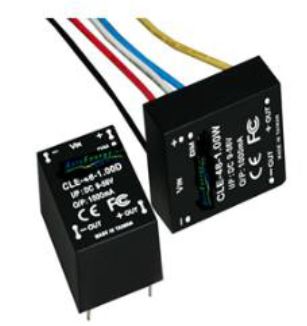

| CLE-48 Series |  |
0.3-1.0 W | 2-52 VDC | 9-56 VDC | |
| D78B05M-1.0 |  |
6.5-20V W | 5V VDC | 1A VDC | |
